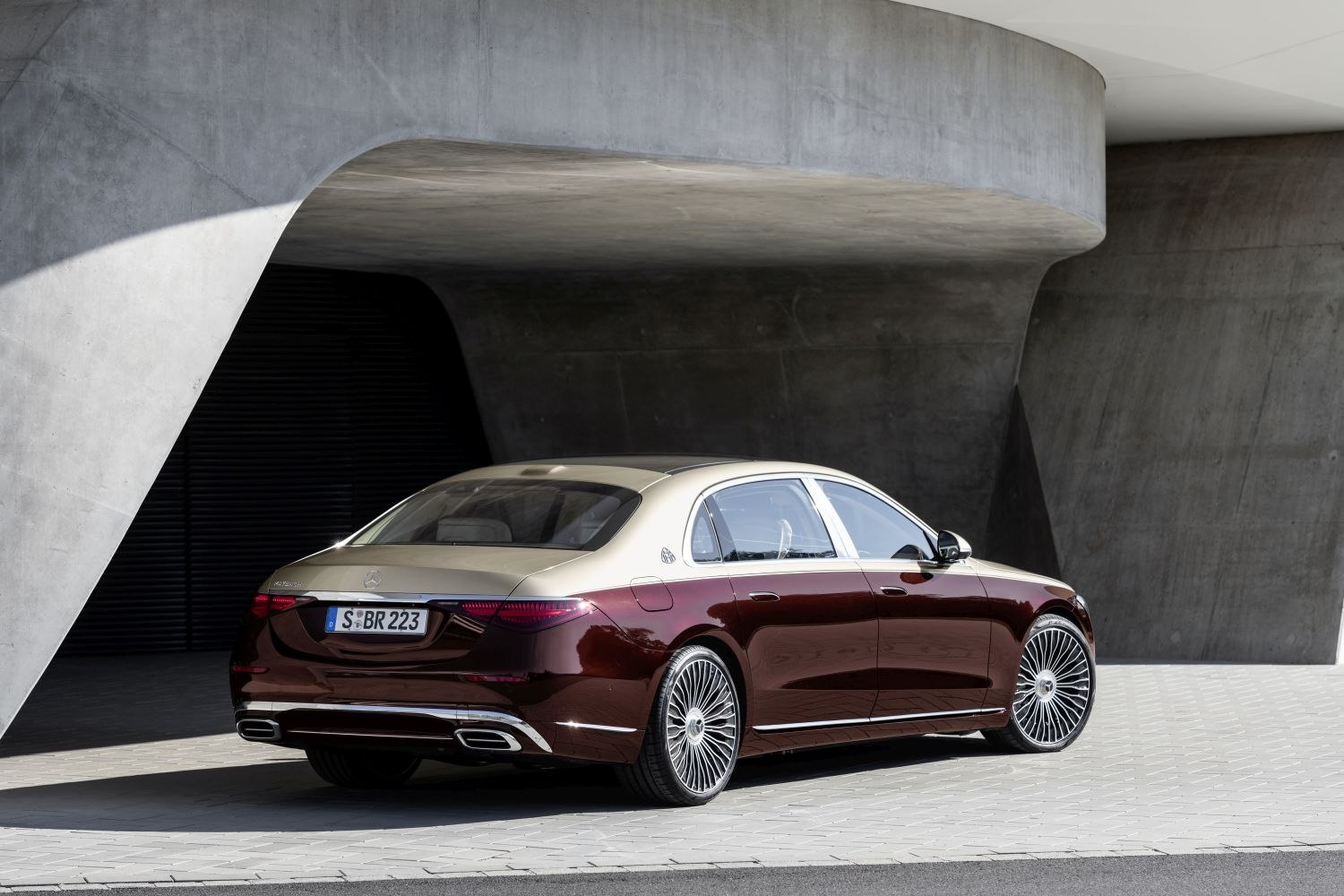

Mercedes-Benz Maybach S-class (Z223) S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC technical specifications and fuel economy

Mercedes-Benz Maybach S-class (Z223) S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC accelerates from 0 to 100 km/h in 4.8 sec. The maximum speed is 250 , Electronically limited km/h.



Mercedes-Benz Maybach S-class (Z223) S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC Technical information

  • Engine displacement
    3982 cm3
  • Power
    503 hp
    370 kW
  • Acceleration from 0 to 100 km/h
    4.8 sec
  • Maximum speed
    250 , Electronically limited km/h
  • Kerb Weight
    2215 kg
    4883 lbs
Compare this car with other cars
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  General information General information
Brand : Mercedes-Benz
Model : S-class
Generation : Maybach S-class (Z223)
Engine / modification : S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC
Production start : 2021 year
Production end :
Coupe type : Sedan
Num. of Doors : 4
Num. of seats : 4
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  Fuel economy (consumption) Fuel economy (consumption)
Fuel consumption / economy - urban :
Fuel consumption / economy - extra urban :
Fuel consumption / economy - combined :
Fuel consumption at Low speed (WLTP) :
Fuel Type : Petrol (Gasoline)
Fuel consumption at Medium speed (WLTP) :
Fuel consumption at high speed (WLTP) :
Fuel tank volume : 76 l | 20.1 US gallons | 16.7 UK gallons
Fuel consumption at very high speed (WLPT) :
Combined fuel consumption (WPLT) : 10.4-11.7 l/100 km
Emission standard : Euro 6D-ISC-FCM
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  Performance Performance
Power : 503 hp | 370 kW
Max power in : 5500 rpm.
Maximum speed : 250 , Electronically limited km/h
Acceleration from 0 to 100 km/h : 4.8 sec
CO2 emissions (WLTP) : 236-267 g/km
Torque : 700 Nm @ 2000-4500 rpm.
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  Engine Engine
Model Engine : M 176
Engine position : Front, longitudinal
Engine displacement : 3982 cm3
Engine oil capacity : 9.5 l
Fuel System : Direct injection
Valvetrain : DOHC
Number of cylinders : 8
Number of valves per cylinder : 4
Piston Stroke : 92 mm
Cylinder Bore : 83 mm
All-electric range (WLTP) :
Average Energy consumption (WLTP) :
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  Electric motor Electric motor
Electric motor power : 20
Electric motor Torque : 200 Nm
System power :
System torque :
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  Transmission Transmission
Wheel Drive : All wheel drive (4x4)
Number of Gears (automatic transmission) : 9G-TRONIC
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  Chassis Chassis
Length : 5469 mm | 215.3 in
Width : 1921 mm | 75.6 in
Width including mirrors : 2109 mm | 83.0 in
Height : 1510 mm | 59.4 in
Wheelbase : 3396 mm | 133.7 in
Front track : 1655 mm | 65.2 in
Rear (Back) track : 1683 mm | 66.3 in
Ride height : 130 mm | 5.1 in
Approach angle : 14.7 °
Departure angle : 15.4 °
Ramp angle : 9.9 °
Front overhang : 877 mm
Rear overhang : 1196 mm
Minimum volume of Luggage (trunk) : 505 l
Front suspension : Pneumatic suspension
Rear suspension : Pneumatic suspension
Max weight : 2910 kg | 6415 lbs
Front brakes : Ventilated discs
Rear brakes : Ventilated discs
Kerb Weight : 2215 kg | 4883 lbs
Power steering : Electric Steering
Minimum turning circle (turning diameter) : 11.4-12.4 m
Mercedes-Benz  Maybach S-class (Z223)  S 580 V8 EQ Boost (503 Hp) 4MATIC 9G-TRONIC  Tyres / Wheels Tyres / Wheels
Tire size : Front wheel tires: 255/45 R19; 255/40 R20; 265/35 R21
Wheel rims size : Front wheel rims: 8.5J x 19; 9J x 20; 9J x 21
