Tesla Model Y Maximum Range (514 Hp) AWD technical specifications and fuel economy
Tesla Model Y Maximum Range (514 Hp) AWD accelerates from 0 to 100 km/h in 5.0 sec. The maximum speed is 217 km/h | 135 mph.
Tesla Model Y Maximum Range (514 Hp) AWD Technical information
|
|
General information
|
|
|---|---|
| Brand : | Tesla |
| Model : | Model Y |
| Generation : | Model Y |
| Engine / modification : | Maximum Range (514 Hp) AWD |
| Production start : | 2021 year |
| Production end : | |
| Coupe type : | |
| Powertrain Architecture : | BEV (Electric Vehicle) |
| Num. of Doors : | 5 |
| Num. of seats : | 5-7 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | |
| Fuel consumption / economy - extra urban : | |
| Fuel consumption / economy - combined : | |
| Fuel Type : | Electricity |
Performance
|
|
| Power : | |
| Max power in : | |
| Maximum speed : | 217 km/h | 135 mph |
| Acceleration from 0 to 100 km/h : | 5.0 sec |
| Torque : | |
Engine
|
|
| Engine position : | Rear axle, Transverse |
| Fuel System : | |
| All-electric range (WLTP) : | 533 km |
| Average Energy consumption (WLTP) : | 16.9 kWh/100 km |
Electric motor
|
|
| Battery voltage : | 360 V |
| Battery technology : | Lithium-ion (Li-Ion) |
| System power : | 514 Hp hp/ rpm. |
Transmission
|
|
| Wheel Drive : | All wheel drive (4x4) |
| Number of Gears (automatic transmission) : | 1 |
Chassis
|
|
| Length : | 4751 mm | 187.0 in |
| Width : | 1921 mm | 75.6 in |
| Width with mirrors folded : | 1978 mm | 77.9 in |
| Width including mirrors : | 2129 mm | 83.8 in |
| Height : | 1624 mm | 63.9 in |
| Wheelbase : | 2890 mm | 113.8 in |
| Front track : | 1636 mm | 64.4 in |
| Rear (Back) track : | 1636 mm | 64.4 in |
| Ride height(clearance) : | 167 mm | 6.6 in |
| Front overhang : | 875 mm |
| Rear overhang : | 986 mm |
| Minimum volume of Luggage (trunk) : | 363-854 l |
| Maximum amount of Luggage (trunk) : | 2158 l |
| Front suspension : | Double wishbone |
| Rear suspension : | Multi-link independent |
| Max weight : | |
| Kerb Weight : | 1979 kg | 4363 lbs |
| Steering type : | Steering rack and pinion |
| Power steering : | Electric Steering |
| Minimum turning circle (turning diameter) : | 12.1 m |
Tyres / Wheels
|
|
| Tire size : | 255/45 R19 XL; 255/40 R20 XL |
| Wheel rims size : | 19; 20 |
| Compare this car with other cars | |
Back to Tesla Model Y generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

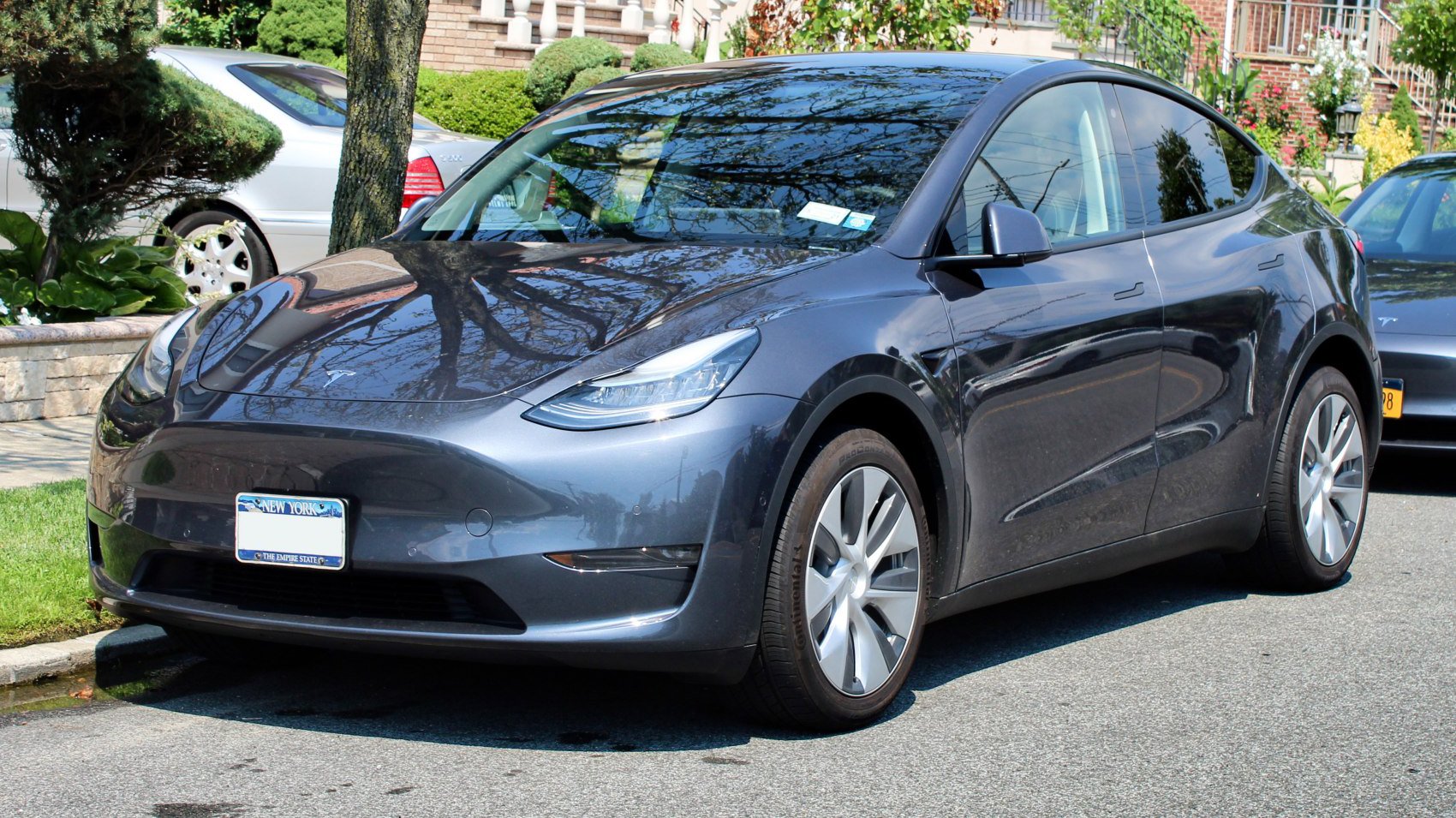

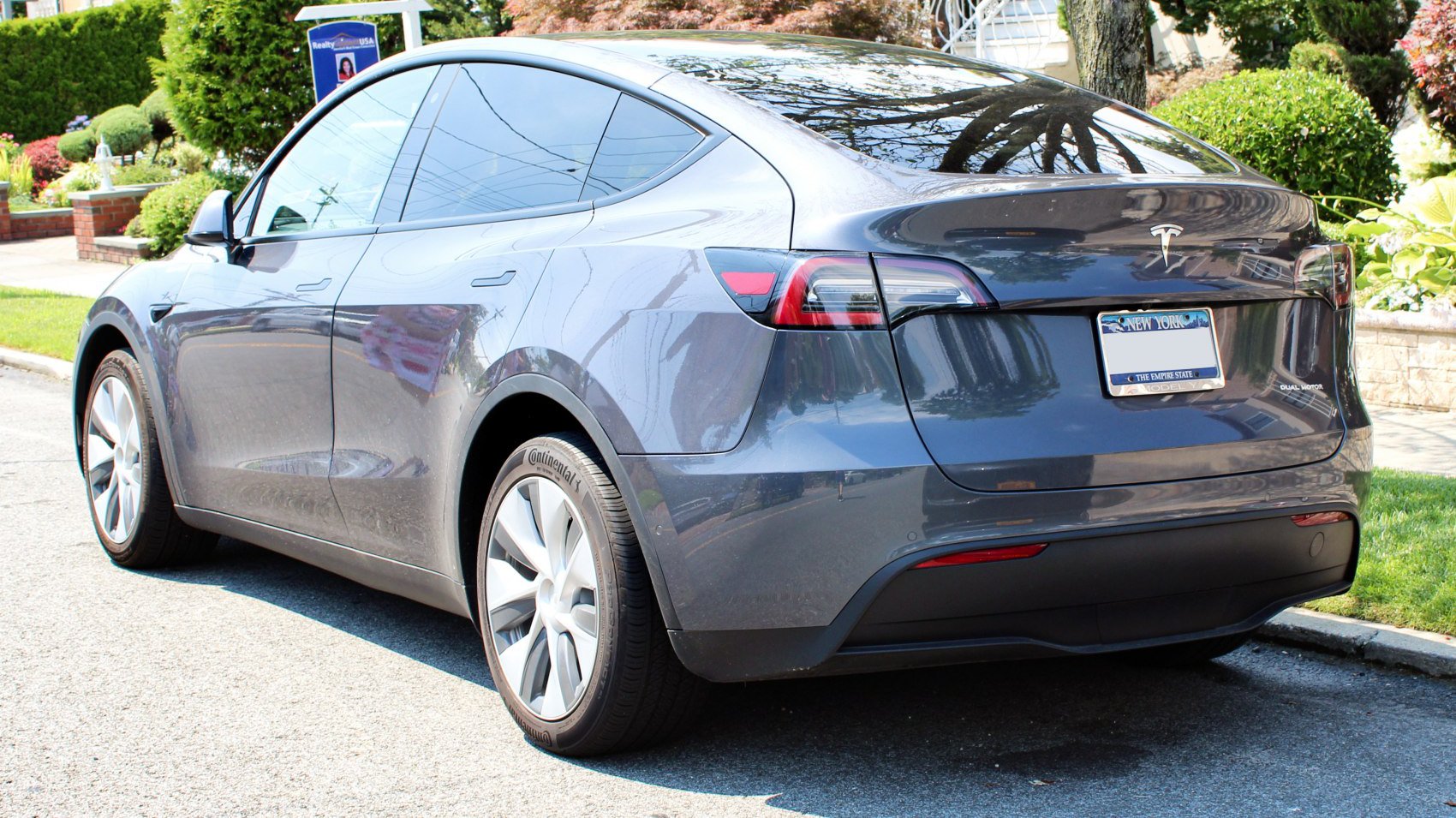

Tesla Model Y Maximum Range (514 Hp) AWD Photo gallery
