Ford Ranger III Double Cab (facelift 2015) 2.2 TDCi (160 Hp) Automatic technical specifications and fuel economy

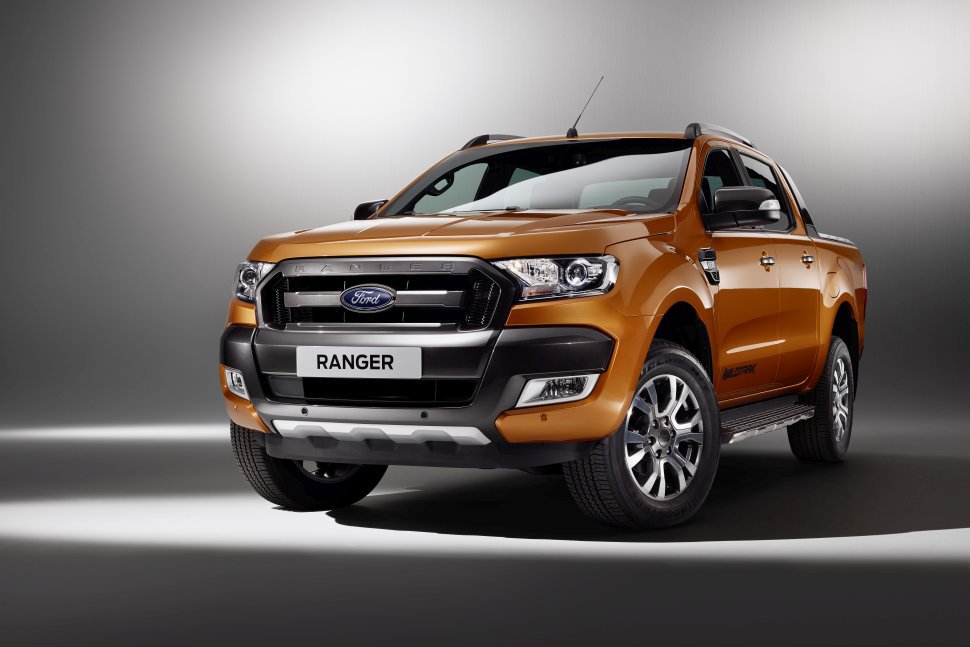

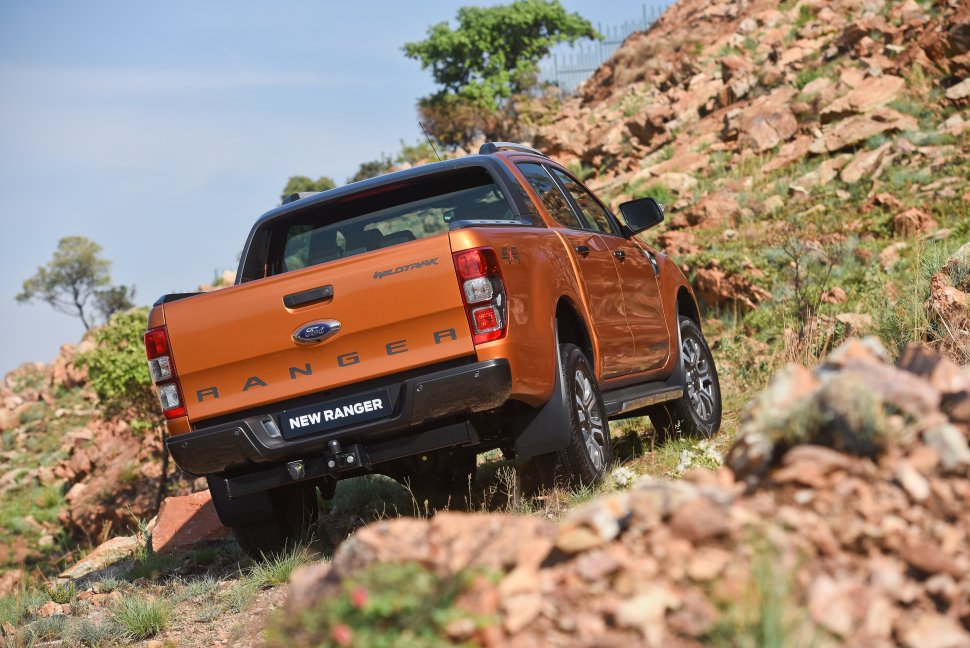

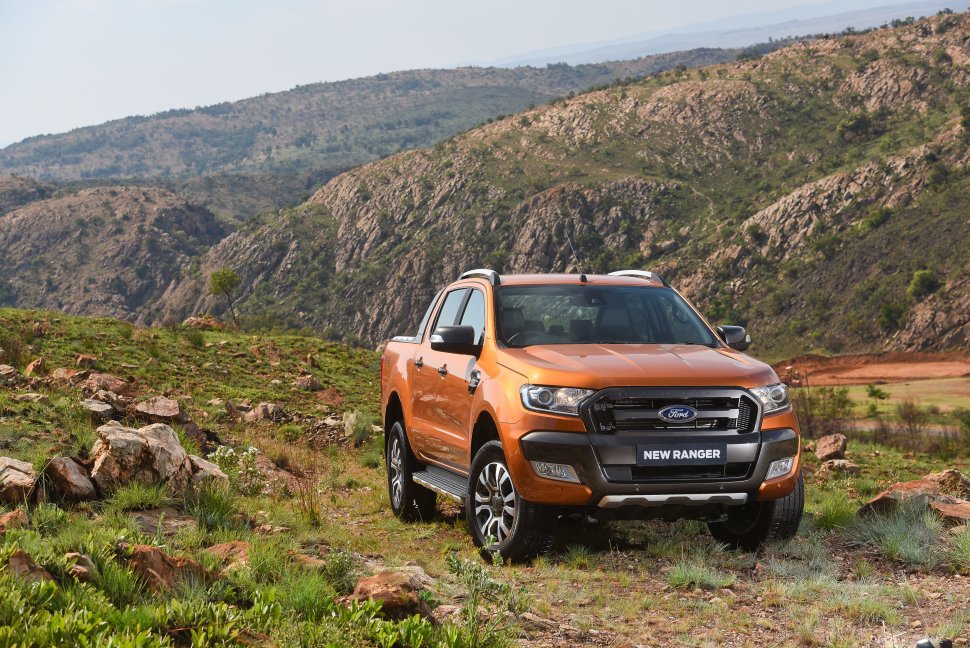

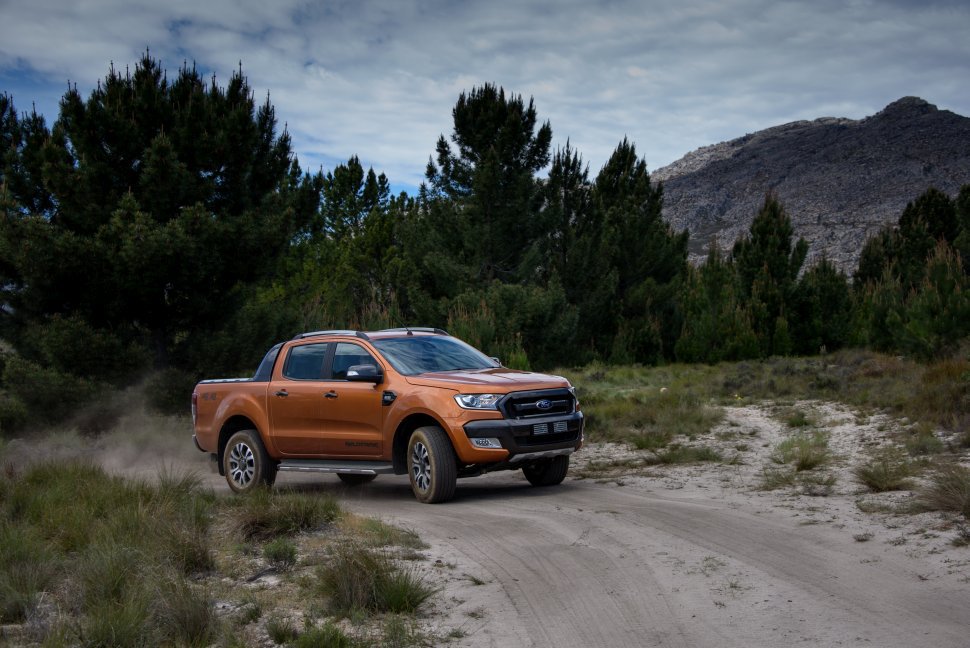

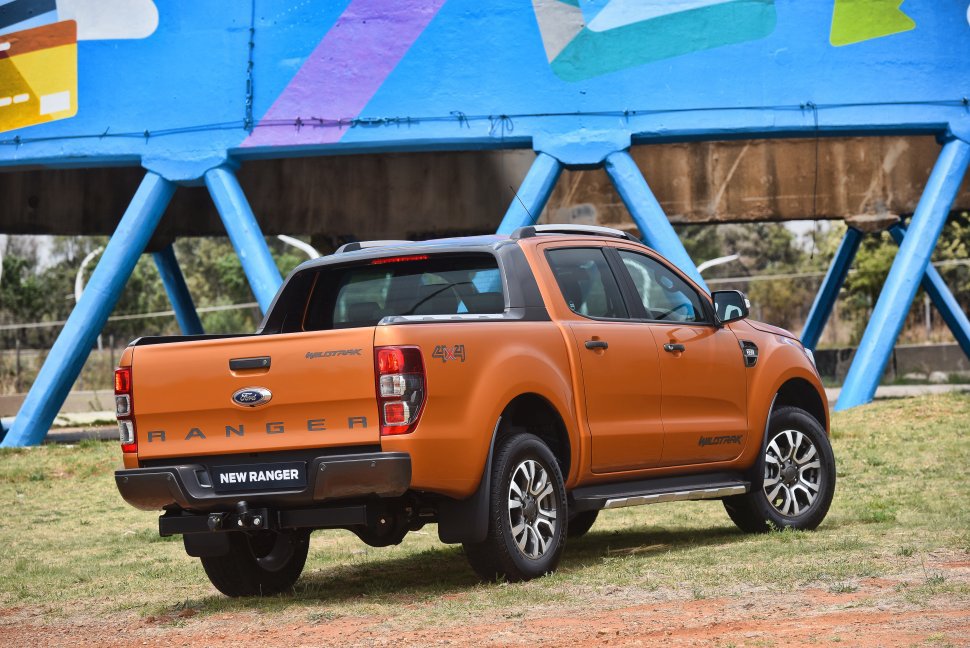

Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic

Ford Ranger III Double Cab (facelift 2015) 2.2 TDCi (160 Hp) Automatic has a combined fuel consumption of 7.5 l/100 km | 31.4 mpg US | 37.7 mpg UK



Ford Ranger III Double Cab (facelift 2015) 2.2 TDCi (160 Hp) Automatic Technical information

  • Engine displacement
    2198 cm3
  • Power
    160 hp
    118 kW
  • Acceleration from 0 to 100 km/h
    N/A
  • Maximum speed
    175 km/h
    109 mph
  • Kerb Weight
    1883 kg
    4151 lbs
Compare this car with other cars
Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic  General information General information
Brand : Ford
Model : Ranger
Generation : Ranger III Double Cab (facelift 2015)
Engine / modification : 2.2 TDCi (160 Hp) Automatic
Production start : 2015 year
Production end : 2018 year
Coupe type : Pick-up
Num. of Doors : 4
Num. of seats : 5
Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic  Fuel economy (consumption) Fuel economy (consumption)
Fuel consumption / economy - urban :
Fuel consumption / economy - extra urban :
Fuel consumption / economy - combined : 7.5 l/100 km | 31.4 mpg US | 37.7 mpg UK
Fuel Type : Diesel
Fuel tank volume : 80 l | 21.1 US gallons | 17.6 UK gallons
Emission standard : Euro 5
CO2 emissions : 197 g/km
Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic  Performance Performance
Power : 160 hp | 118 kW
Max power in : 3700 rpm.
Maximum speed : 175 km/h | 109 mph
Acceleration from 0 to 100 km/h :
Torque : 385 Nm @ 1500-2500 rpm.
Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic  Engine Engine
Engine position : Front, longitudinal
Engine displacement : 2198 cm3
Fuel System : Diesel Commonrail
Aspiration / Turbine : Turbocharger / Intercooler
Position of cylinders : Inline
Number of cylinders : 4
Number of valves per cylinder : 4
Compression ratio : 15.7
Piston Stroke : 94.6 mm
Cylinder Bore : 86 mm
Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic  Transmission Transmission
Wheel Drive : Rear wheel drive
Number of Gears (automatic transmission) : 6
Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic  Chassis Chassis
Length : 5277-5354 mm
Width : 1860 mm | 73.2 in
Height : 1815 mm | 71.5 in
Wheelbase : 3220 mm | 126.8 in
Front track : 1590 mm | 62.6 in
Rear (Back) track : 1590 mm | 62.6 in
Ride height(clearance) : 232 mm | 9.1 in
Approach angle : 28 °
Departure angle : 28 °
Ramp angle : 25 °
Climb angle : 32 °
Front overhang : 908 mm
Rear overhang : 1149 mm
Wading depth : 600 mm
Front suspension : Independent, spring
Rear suspension : conditional suspension of two longitudinal semi-elliptic leaf springs
Max weight : 3200 kg | 7055 lbs
Front brakes : Ventilated discs
Rear brakes : Drum
Kerb Weight : 1883 kg | 4151 lbs
ABS : yes
Steering type : Steering rack and pinion
Power steering : Electric Steering
Ford  Ranger III Double Cab (facelift 2015)  2.2 TDCi (160 Hp) Automatic  Tyres / Wheels Tyres / Wheels
Tire size : 215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Wheel rims size : R16; R17; R18
