BMW X5 (G05 LCI, facelift 2023) M60i V8 (530 Hp) MHEV xDrive Steptronic technical specifications and fuel economy
BMW X5 (G05 LCI, facelift 2023) M60i V8 (530 Hp) MHEV xDrive Steptronic accelerates from 0 to 100 km/h in 4.3 sec. The maximum speed is 250 , Electronically limited km/h.
BMW X5 (G05 LCI, facelift 2023) M60i V8 (530 Hp) MHEV xDrive Steptronic Technical information
|
|
General information
|
|
|---|---|
| Brand : | BMW |
| Model : | X5 |
| Generation : | X5 (G05 LCI, facelift 2023) |
| Engine / modification : | M60i V8 (530 Hp) MHEV xDrive Steptronic |
| Production start : | 2023 year |
| Production end : | |
| Coupe type : | |
| Powertrain Architecture : | MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV) |
| Num. of Doors : | 5 |
| Num. of seats : | 5 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | |
| Fuel consumption / economy - extra urban : | |
| Fuel consumption / economy - combined : | |
| Fuel Type : | Petrol (Gasoline) |
| Drag coefficient : | 0.36 |
| Fuel tank volume : | 83 l | 21.9 US gallons | 18.3 UK gallons |
| Combined fuel consumption (WLTP) : | 11.5-12.5 l/100 km |
| Emission standard : | Euro 6d |
Performance
|
|
| Power : | 530 hp | 390 kW |
| Max power in : | 5500-6000 rpm. |
| Maximum speed : | 250 , Electronically limited km/h |
| Acceleration from 0 to 100 km/h : | 4.3 sec |
| CO2 emissions (WLTP) : | 261-283 g/km |
| Torque : | 750 Nm @ 1800-4600 rpm. |
Engine
|
|
| Model Engine : | S68 |
| Engine position : | |
| Engine displacement : | 4395 cm3 |
| Fuel System : | |
| Valvetrain : | Double-VANOS, VALVETRONIC |
| Number of cylinders : | 8 |
| Number of valves per cylinder : | 4 |
| Compression ratio : | 10.5 |
| Piston Stroke : | 88.3 mm |
| Cylinder Bore : | 89 mm |
Electric motor
|
|
| Electric motor power : | 12 |
| Electric motor Torque : | 200 Nm |
| Battery voltage : | 48 V |
Transmission
|
|
| Wheel Drive : | All wheel drive (4x4) |
Chassis
|
|
| Length : | 4935 mm | 194.3 in |
| Width : | 2004 mm | 78.9 in |
| Width including mirrors : | 2218 mm | 87.3 in |
| Height : | 1765 mm | 69.5 in |
| Wheelbase : | 2975 mm | 117.1 in |
| Front track : | 1679 mm | 66.1 in |
| Rear (Back) track : | 1688 mm | 66.5 in |
| Ride height(clearance) : | 214 mm | 8.4 in |
| Approach angle : | 25.2 ° |
| Departure angle : | 22.3 ° |
| Front overhang : | 887 mm |
| Rear overhang : | 1073 mm |
| Wading depth : | 500 mm |
| Minimum volume of Luggage (trunk) : | 650 l |
| Maximum amount of Luggage (trunk) : | 1870 l |
| Max weight : | 3065 kg | 6757 lbs |
| Front brakes : | Ventilated discs |
| Rear brakes : | Ventilated discs |
| Kerb Weight : | 2345 kg | 5170 lbs |
| Steering type : | Steering rack and pinion |
| Power steering : | Electric Steering |
| Max. roof load : | 100 kg |
| Minimum turning circle (turning diameter) : | 12 m |
| Permitted trailer load with brakes (12%) : | 3500 kg |
| Permitted trailer load without brakes : | 750 kg |
| Permitted towbar download : | 140 kg |
Tyres / Wheels
|
|
| Tire size : | Front wheel tires: 275/40 R21 |
| Wheel rims size : | Front wheel rims: 9.5J x 21 |
| Compare this car with other cars | |
Back to BMW X5 generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

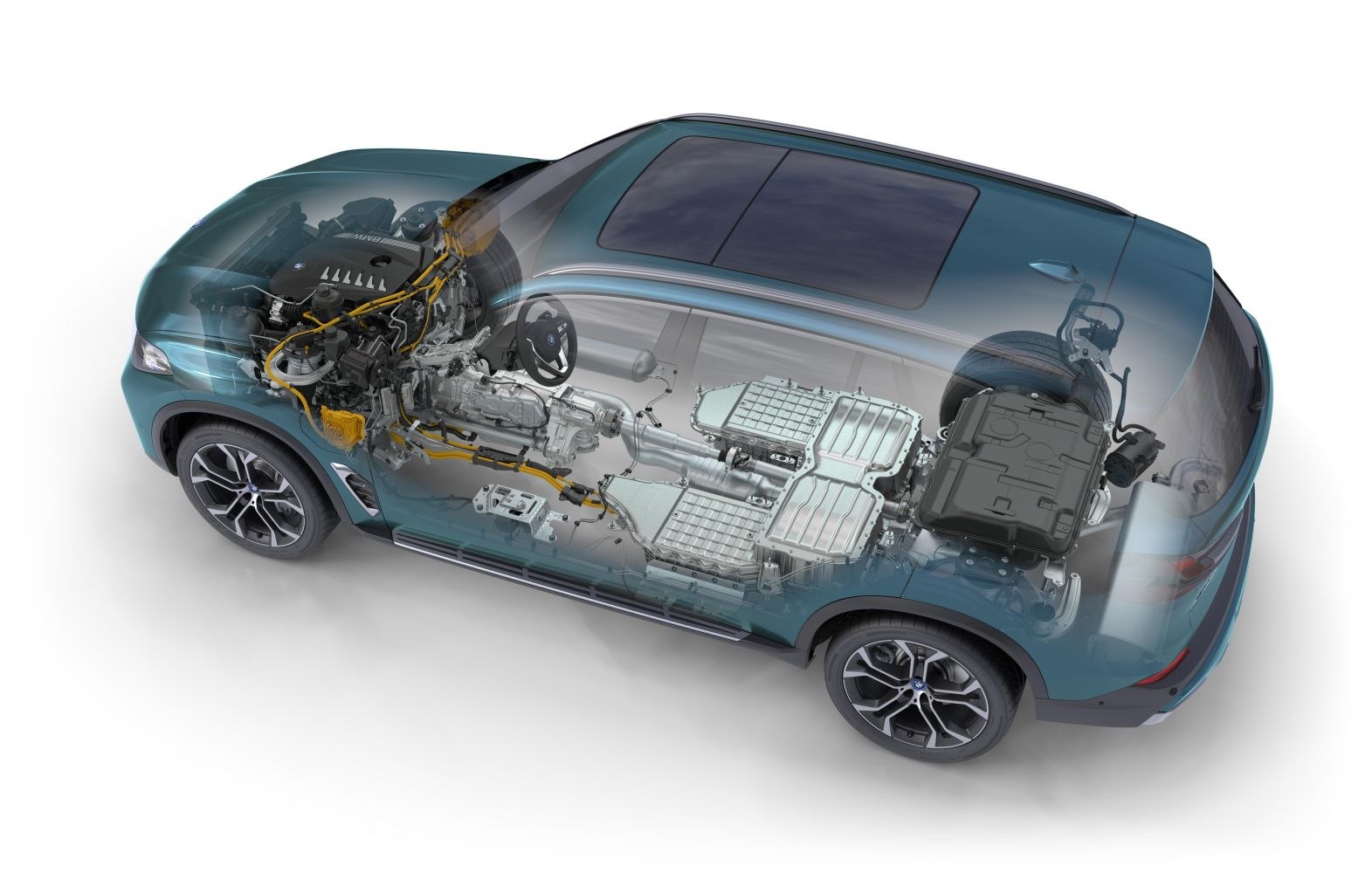

BMW X5 (G05 LCI, facelift 2023) M60i V8 (530 Hp) MHEV xDrive Steptronic Photo gallery
