BMW X3 M (F97) 3.0 (480 Hp) xDrive Steptronic technical specifications and fuel economy

BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic

BMW X3 M (F97) 3.0 (480 Hp) xDrive Steptronic has a combined fuel consumption of 10.5 l/100 km | 22.4 mpg US | 26.9 mpg UK urban fuel consumption of 12.9-13.6 l/100 km extra urban fuel consumption of 8.7-9.1 l/100 km BMW X3 M (F97) 3.0 (480 Hp) xDrive Steptronic accelerates from 0 to 100 km/h in 4.2 sec. The maximum speed is 250 km/h | 155 mph.


BMW X3 M (F97) 3.0 (480 Hp) xDrive Steptronic Technical information

BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  General information General information
Brand : BMW
Model : X3 M
Generation : X3 M (F97)
Engine / modification : 3.0 (480 Hp) xDrive Steptronic
Production start : 2019 year
Production end :
Coupe type : SUV
Num. of Doors : 5
Num. of seats : 5
BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  Fuel economy (consumption) Fuel economy (consumption)
Fuel consumption / economy - urban : 12.9-13.6 l/100 km
Fuel consumption / economy - extra urban : 8.7-9.1 l/100 km
Fuel consumption / economy - combined : 10.5 l/100 km | 22.4 mpg US | 26.9 mpg UK
Fuel consumption at Low speed (WLTP) :
Fuel Type : Petrol (Gasoline)
Fuel consumption at Medium speed (WLTP) :
Drag coefficient : 0.36
Fuel consumption at high speed (WLTP) :
Fuel tank volume : 65 l | 17.2 US gallons | 14.3 UK gallons
Fuel consumption at very high speed (WLPT) :
Combined fuel consumption (WPLT) :
Emission standard : EURO VId-Temp
CO2 emissions : 239 g/km
BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  Performance Performance
Power : 480 hp | 353 kW
Max power in : 6250 rpm.
Maximum speed : 250 km/h | 155 mph
Acceleration from 0 to 100 km/h : 4.2 sec
CO2 emissions (WLTP) :
Torque : 600 Nm @ 2600-5600 rpm.
BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  Engine Engine
Engine position : Front, longitudinal
Engine displacement : 2993 cm3
Engine oil capacity : 7 l
Fuel System : Direct injection
Aspiration / Turbine : Twin-power turbo
Position of cylinders : Inline
Valvetrain : VALVETRONIC
Number of cylinders : 6
Number of valves per cylinder : 4
Compression ratio : 9.3
Piston Stroke : 90 mm
Cylinder Bore : 84 mm
Average Energy consumption (WLTP) :
BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  Electric motor Electric motor
System power :
System torque :
BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  Transmission Transmission
Wheel Drive : All wheel drive (4x4)
Number of Gears (automatic transmission) : 8 Steptronic
BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  Chassis Chassis
Length : 4726 mm | 186.1 in
Width : 1897 mm | 74.7 in
Width including mirrors : 2131 mm | 83.9 in
Height : 1667 mm | 65.6 in
Wheelbase : 2864 mm | 112.8 in
Front track : 1623 mm | 63.9 in
Rear (Back) track : 1602 mm | 63.1 in
Front overhang : 864 mm
Rear overhang : 998 mm

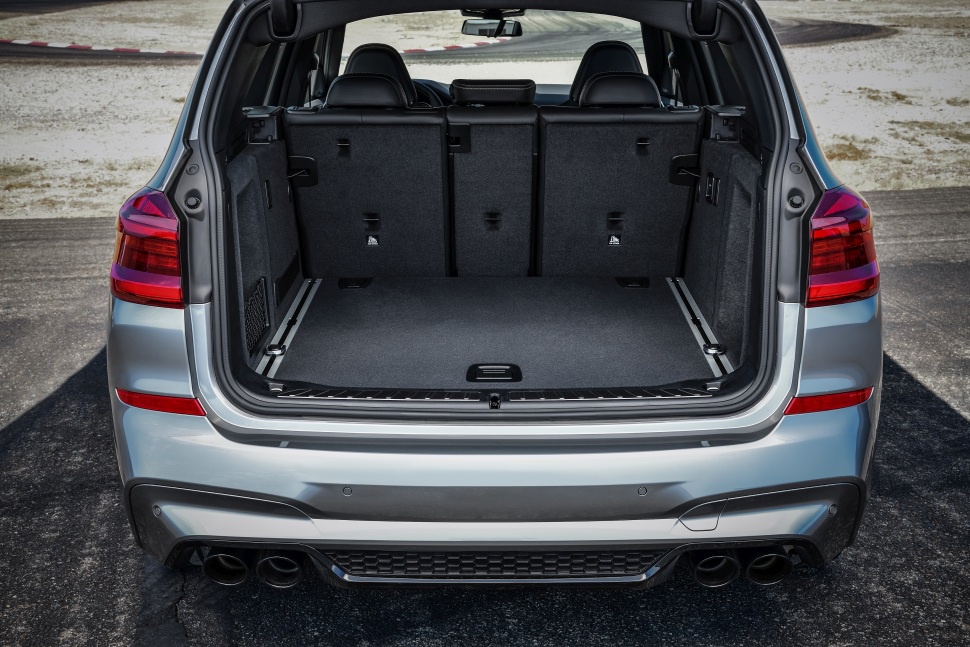

Minimum volume of Luggage (trunk) : 550 l
Maximum amount of Luggage (trunk) : 1600 l
Front suspension : Double wishbone
Rear suspension : Multi-link independent
Max weight : 2500 kg | 5512 lbs
Front brakes : Ventilated discs
Rear brakes : Ventilated discs
Kerb Weight : 1970 kg | 4343 lbs
ABS : yes
Steering type : Steering rack
Power steering : Electric Steering
Max. roof load : 100 kg
Permitted trailer load with brakes (12%) : 2500 kg
Minimum turning circle (turning diameter) : 12.6 m
Permitted trailer load without brakes : 750 kg
All-electric range (WLTP) :
Permitted towbar download : 100 kg
BMW  X3 M (F97)  3.0 (480 Hp) xDrive Steptronic  Tyres / Wheels Tyres / Wheels
Tire size : 255/45 R20 105Y; 265/45 R20 108Y
Wheel rims size : 9J x 20; 10J x 20
