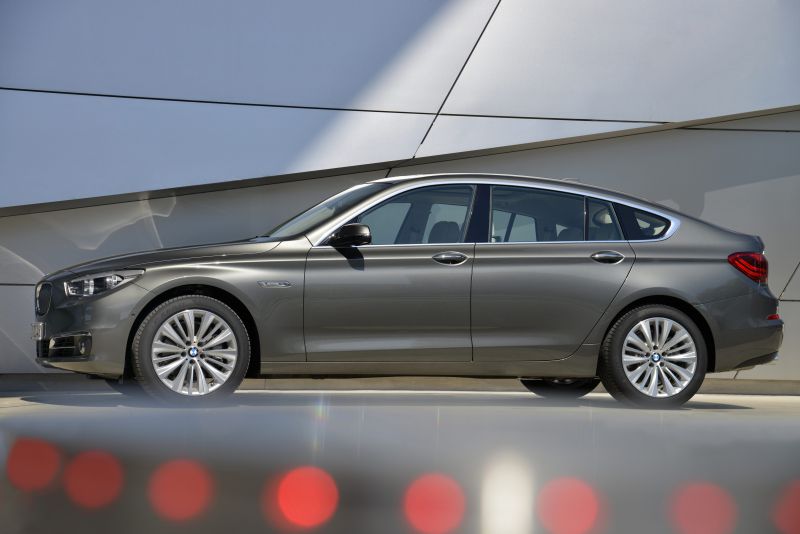

BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic

BMW 5 Series Gran Turismo (F07 LCI, Facelift 2013) 535i (306 Hp) Steptronic Technical specifications and fuel economy

BMW 5 Series Gran Turismo (F07 LCI, Facelift 2013) 535i (306 Hp) Steptronic has a combined fuel consumption of 8.2 l/100 km | 28.7 mpg US | 34.4 mpg UK urban fuel consumption of 11.2 l/100 km | 21.0 mpg US | 25.2 mpg UK extra urban fuel consumption of 6.5 l/100 km | 36.2 mpg US | 43.5 mpg UK BMW 5 Series Gran Turismo (F07 LCI, Facelift 2013) 535i (306 Hp) Steptronic accelerates from 0 to 100 km/h in 6.1 sec. The maximum speed is 250 km/h | 155 mph.


BMW 5 Series Gran Turismo (F07 LCI, Facelift 2013) 535i (306 Hp) Steptronic Technical information

BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  General information General information
Brand : BMW
Model : 5 Series
Generation : 5 Series Gran Turismo (F07 LCI, Facelift 2013)
Engine / modification : 535i (306 Hp) Steptronic
Production start : 2013 year
Production end : 2017 year
Coupe type : Hatchback
Num. of Doors : 5
Num. of seats : 5
BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  Fuel economy (consumption) Fuel economy (consumption)
Fuel consumption / economy - urban : 11.2 l/100 km | 21.0 mpg US | 25.2 mpg UK
Fuel consumption / economy - extra urban : 6.5 l/100 km | 36.2 mpg US | 43.5 mpg UK
Fuel consumption / economy - combined : 8.2 l/100 km | 28.7 mpg US | 34.4 mpg UK
Fuel Type : Petrol (Gasoline)
Drag coefficient : 0.30
Fuel tank volume : 70 l | 18.5 US gallons | 15.4 UK gallons
Emission standard : EURO VI
CO2 emissions : 192 g/km
BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  Performance Performance
Power : 306 hp | 225 kW
Max power in : 5800-6000 rpm.
Maximum speed : 250 km/h | 155 mph
Acceleration from 0 to 100 km/h : 6.1 sec
Torque : 400 Nm @ 1200-5000 rpm.
BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  Engine Engine
Engine position : Front, longitudinal
Engine displacement : 2979 cm3
Engine oil capacity : 6.5 l
Coolant : 9.3 l
Fuel System : Direct injection
Aspiration / Turbine : Twin-power turbo
Position of cylinders : Inline
Number of cylinders : 6
Number of valves per cylinder : 4
Compression ratio : 10.2
Piston Stroke : 89.6 mm
Cylinder Bore : 84 mm
BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  Electric motor Electric motor
System power :
System torque :
BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  Transmission Transmission
Wheel Drive : Rear wheel drive
Number of Gears (automatic transmission) : 8 Steptronic
BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  Chassis Chassis
Length : 5004 mm | 197.0 in
Width : 1901 mm | 74.8 in
Height : 1559 mm | 61.4 in
Wheelbase : 3070 mm | 120.9 in
Front track : 1611 mm | 63.4 in
Rear (Back) track : 1654 mm | 65.1 in
Ride height : 145 mm | 5.7 in
Minimum volume of Luggage (trunk) : 500 l
Maximum amount of Luggage (trunk) : 1700 l
Front suspension : Double wishbone
Rear suspension : Multi-link independent
Max weight : 2570 kg | 5666 lbs
Front brakes : Ventilated discs
Rear brakes : Ventilated discs
Kerb Weight : 1940 kg | 4277 lbs
ABS : yes
Steering type : Steering rack
Power steering : Electric Steering
Max. roof load : 75 kg
Permitted trailer load with brakes (12%) : 2100 kg
Minimum turning circle (turning diameter) : 12.2 m
Permitted trailer load without brakes : 750 kg
Permitted towbar download : 100 kg
BMW  5 Series Gran Turismo (F07 LCI, Facelift 2013)  535i (306 Hp) Steptronic  Tyres / Wheels Tyres / Wheels
Tire size : 245/50 R18 100Y
Wheel rims size : 8J x 18
