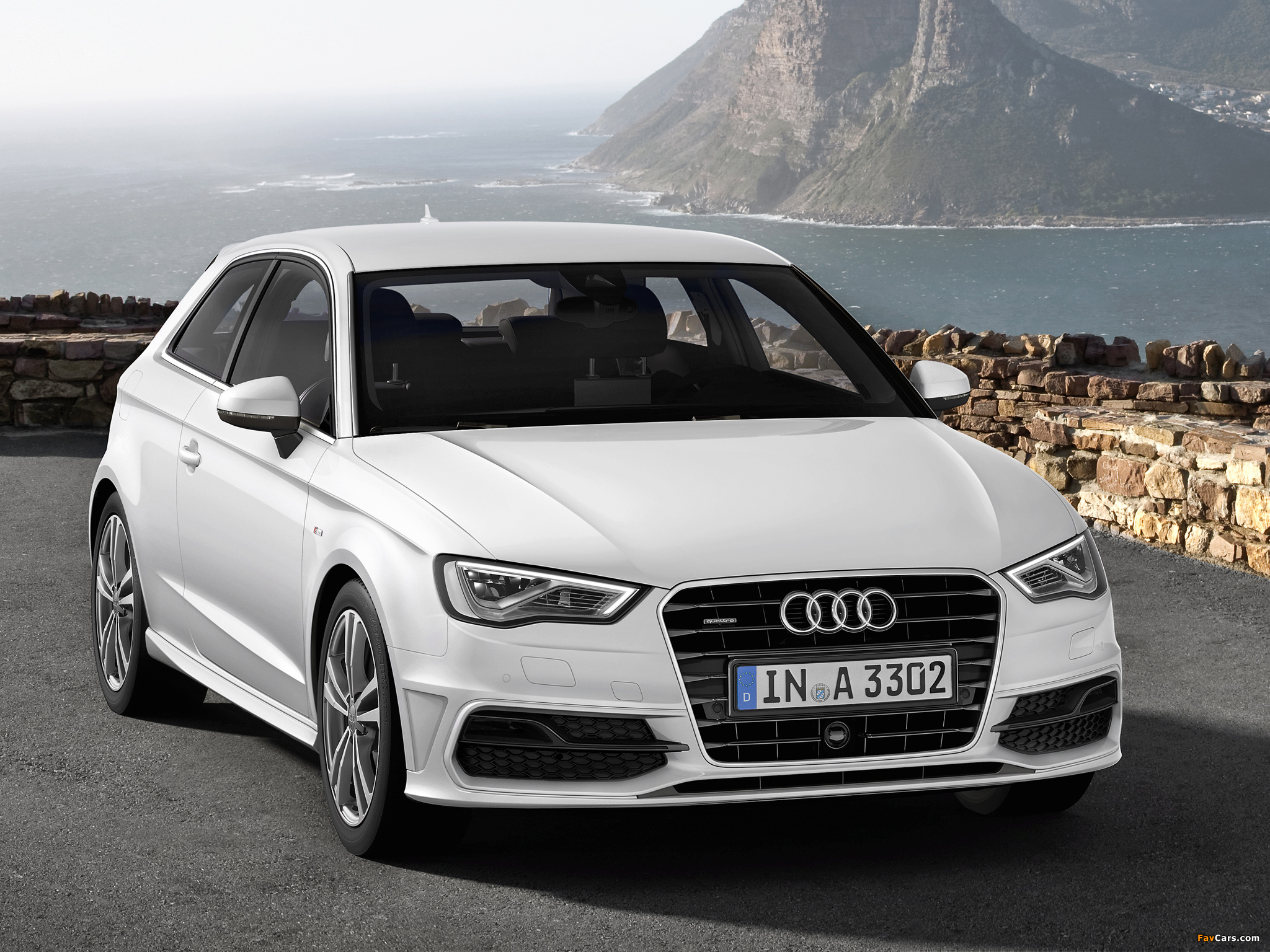

Audi  A3 (8V)  1.6 TDI (105 Hp)

Audi A3 (8V) 1.6 TDI (105 Hp) Technical specifications and fuel economy

Audi A3 (8V) 1.6 TDI (105 Hp) has a combined fuel consumption of 3.8 l/100 km. | 61.9 mpg US | 74.3 mpg UK urban fuel consumption of 4.6 l/100 km. | 51.1 mpg US | 61.4 mpg UK extra urban fuel consumption of 3.3 l/100 km. | 71.3 mpg US | 85.6 mpg UK Audi A3 (8V) 1.6 TDI (105 Hp) accelerates from 0 to 100 km/h in 10.5 sec. The maximum speed is 195 km/h | 121 mph.


Audi A3 (8V) 1.6 TDI (105 Hp) Technical information

Audi  A3 (8V)  1.6 TDI (105 Hp)  General information General information
Brand : Audi
Model : A3
Generation : A3 (8V)
Engine / modification : 1.6 TDI (105 Hp)
Production start : 2012 year
Production end : 2014 year
Coupe type : Hatchback
Num. of Doors : 3
Num. of seats : 5
Audi  A3 (8V)  1.6 TDI (105 Hp)  Fuel economy (consumption) Fuel economy (consumption)
Fuel consumption / economy - urban : 4.6 l/100 km. | 51.1 mpg US | 61.4 mpg UK
Fuel consumption / economy - extra urban : 3.3 l/100 km. | 71.3 mpg US | 85.6 mpg UK
Fuel consumption / economy - combined : 3.8 l/100 km. | 61.9 mpg US | 74.3 mpg UK
Fuel Type : Diesel
Drag coefficient : 0.30
Fuel tank volume : 50 l | 13.2 US gallons | 11.0 UK gallons
Emission standard : EURO V
CO2 emissions : 99 g/km
Audi  A3 (8V)  1.6 TDI (105 Hp)  Performance Performance
Power : 105 hp | 77 kW
Max power in : 3000-4000 rpm.
Maximum speed : 195 km/h | 121 mph
Acceleration from 0 to 100 km/h : 10.5 sec
Torque : 250 Nm/1500-2750 rpm.
Audi  A3 (8V)  1.6 TDI (105 Hp)  Engine Engine
Engine position : Front, transversely
Engine displacement : 1598 cm3
Engine oil capacity : 4.6 l
Fuel System : Diesel Commonrail
Aspiration / Turbine : Turbo / Intercooler (Turbocharging / Intercooler)
Position of cylinders : Inline
Valvetrain : DOHC
Number of cylinders : 4
Number of valves per cylinder : 4
Compression ratio : 16.2
Stroke : 80.5 mm.
Bore : 79.5 mm.
Audi  A3 (8V)  1.6 TDI (105 Hp)  Transmission Transmission
Wheel Drive : Front wheel drive
Number of Gears (manual transmission) : 6
Audi  A3 (8V)  1.6 TDI (105 Hp)  Chassis Chassis
Length : 4237 mm. | 166.8 in
Width : 1777 mm. | 70.0 in
Width including mirrors : 1966 mm. | 77.4 in
Height : 1421 mm. | 55.9 in
Wheelbase : 2601 mm. | 102.4 in
Front track : 1542 mm. | 60.7 in
Rear (Back) track : 1514 mm. | 59.6 in
Front overhang : 869 mm.
Rear overhang : 767 mm.
Minimum volume of Luggage (trunk) : 365 l
Maximum amount of Luggage (trunk) : 1100 l
Front suspension : Independent, Spring McPherson, with stabilizer
Rear suspension : Semi-independent, spring
Max weight : 1790 kg. | 3946 lbs
Kerb Weight : 1230 kg. | 2712 lbs
Front brakes : Ventilated discs
Rear brakes : Disc
ABS : yes
Steering type : Steering rack
Power steering : Electric Steering
Max. roof load : 75 kg.
Permitted trailer load with brakes (8%) : 1700 kg.
Permitted trailer load with brakes (12%) : 1500 kg.
Minimum turning circle (turning diameter) : 10.7 m
Permitted trailer load without brakes : 650 kg.
Permitted towbar download : 75 kg.
Audi  A3 (8V)  1.6 TDI (105 Hp)  Tyres / Wheels Tyres / Wheels
Tire size : 205/55 R16
Wheel rims size : 6.5J x 16
